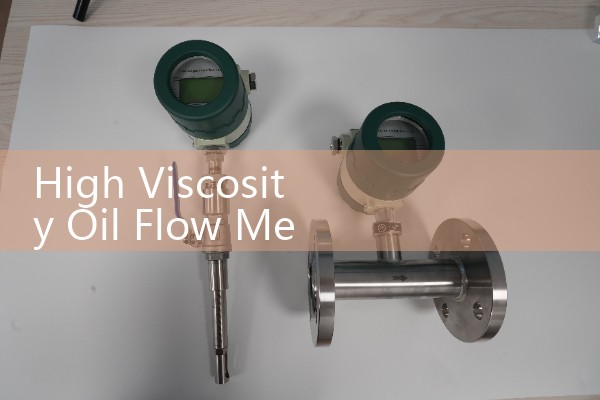

High Viscosity Oil Flow Meter: Overcoming Heavy Drag and Mechanical Resistance
Quick Answer: For heavy fuel oil, crude oil, syrup, or polymer melts with viscosity above 50 cP, positive displacement meters like oval gear or helical gear types deliver the best accuracy and repeatability. Silver Instruments offers high-viscosity flow meters with wide turndown and direct mass output, handling fluids up to 100,000 cP without slipping or stalling.
Why high-viscosity fluids destroy standard flow meter accuracy
High-viscosity oils create heavy drag inside a measuring chamber. A turbine meter designed for water will under-read or stop rotating when you push asphalt or bunker fuel through it. The internal bearing friction becomes too high compared to the fluid driving force. We have seen this on customer sites many times. A steam boiler plant in Indonesia switched to heavy fuel oil from diesel and their existing turbine meter gave a 15 % error within two weeks. The oil viscosity at 80 °C was still 180 cP. That is well beyond most velocity-based meters.
Vortex meters suffer even worse because the fluid must form stable vortices. Highly viscous fluids dampen the vortex shedding, and the meter goes blind below a certain Reynolds number. Coriolis meters can measure high-viscosity liquids, but the pressure drop across the tubes becomes significant on small line sizes. In practice, most engineers skip this part and go straight to a positive displacement (PD) flow meter when the oil viscosity exceeds 200 cP at operating temperature.
How oval gear flow meters handle heavy drag
An oval gear meter uses two interlocking rotors that rotate inside a precision housing. As high-viscosity fluid enters, it fills the crescent-shaped gaps and pushes the gears with near-zero slippage. This is why PD meters maintain 0.5 % reading accuracy even at 80,000 cP. Silver oval gear meters use PTFE gears and hard-anodized aluminum bodies for light oil, or cast steel and stainless steel internals for heavy fuel oil up to 250 °C. For bitumen metering, we supply heated meters with hot-oil jackets, keeping the fluid above 150 °C so the viscosity stays manageable. A typical DN25 oval gear meter from us covers 1 to 100 L/min and outputs a 4-20 mA HART signal direct to a PLC.
Because positive displacement meters physically capture a known volume per revolution, the output is inherently linear. That means no Reynolds number correction, no profile factor, and no straight pipe run requirement. You can install an oval gear meter right after a 90° elbow and it will still measure correctly. We have seen this in a Thailand lubricant blending plant where space constraints forced a tight installation. They wanted a simple setup with no flow conditioner. The oval gear meter solved it.
Coriolis meters for high-viscosity oil: direct mass but watch pressure drop
Coriolis mass flow meters measure true mass flow rate independent of viscosity. A DN15 Coriolis meter from Silver Instruments handles 0 to 2000 kg/h of heavy oil at 1000 cP with no degradation in accuracy. However, the internal tube geometry creates a pressure drop that rises with viscosity. If you measure 10,000 cP polymer melt at 5 bar inlet pressure, the meter might drop 1.5 bar across it. This can cause flashing or product degradation in some processes.
Many chemical plants in the Middle East order Coriolis meters for additive injection at high viscosity. They send us the parameters: 80 °C, 850 kg/m³ density, 2500 cP, 6 bar line pressure, DN10 size. We then simulate pressure loss and confirm the mete
Installation tips for heavy oil flow meters
Here’s the thing. High-viscosity oil can trap air at startup and cause batching errors. A small air eliminator upstream of a PD meter is not optional for fuels above 500 cP. In a marine fuel oil bunkering system in Singapore, we supplied a DN50 oval gear meter with an integrated strainer and an air release valve. The result was a consistent ±0.3 % batch accuracy compared to previous errors reaching 3 % when air slugs entered the line.
If the oil solidifies at ambient temperature, you need trace heating and insulation on the meter body. We often deliver meters with PT100 sensor ports and a compact controller that keeps the housing at setpoint. For outdoor installations in Kazakhstan or northern China, this prevents meter damage and ensures fluidity at startup.
Why engineers choose Silver Instruments for high-viscosity flow metering
Silver Automation Instruments ships oval gear, helical gear, and Coriolis flow meters suitable for heavy oil from DN6 to DN150. Every meter comes with a calibration certificate traceable to a NIST-based facility, covering viscosity points up to 100,000 cP. Last year a paint manufacturer in Vietnam asked for a flow meter to measure 15,000 cP epoxy resin at 50 °C. We supplied a DN20 oval gear meter with PEEK gears and a 4-20 mA output. It has been running 24/7 for 10 months with no drift.
We support countries like Malaysia, Nigeria, Saudi Arabia, Brazil, and Australia. Our technical team can assist with installation, heating jackets, and communication protocols including Modbus RTU over RS485. This is not a generic catalog purchase. The meter you receive will match your fluid, temperature, and pipe size exactly.
Frequently Asked Questions
What is the maximum viscosity an oval gear flow meter can measure?
The standard design handles up to 100,000 cP if the fluid has lubricating properties. For non-lubricating fluids like pure syrup, we recommend a material upgrade, and viscosity above 20,000 cP may require a larger meter size to reduce drag torque.
Can I use a Coriolis meter for heavy fuel oil above 200 °C?
Yes, with a high-temperature tube option up to 350 °C. The meter body and flanges are rated accordingly. The transmitter electronics must be separated from the hot section via a remote-mount kit. Send us your temperature and pressure and we will specify the correct model.
How do I prevent a high-viscosity meter from clogging during shutdown?
Use a heat-jacketed meter body with a flushing port. Before shutdown, flush the meter with a lighter oil or solvent while maintaining temperature. This keeps the internals clean and prevents seizure at the next startup.
What output signals do your heavy oil flow meters provide?
Standard outputs are 4-20 mA HART and pulse. Optional Modbus RTU, RS485, and two independent relay alarms. For batching applications, we can integrate a batch controller that directly drives a solenoid valve or pump.
Do you provide ATEX or IECEx certification for high-viscosity meters in hazardous areas?
Yes. Oval gear and Coriolis meters are available with Ex ia or Ex d certification for Zone 1 and Zone 2 environments. This is common for refinery fuel oil lines and marine vessel applications.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range (L/h or kg/h) to get a specific model recommendation and price.
