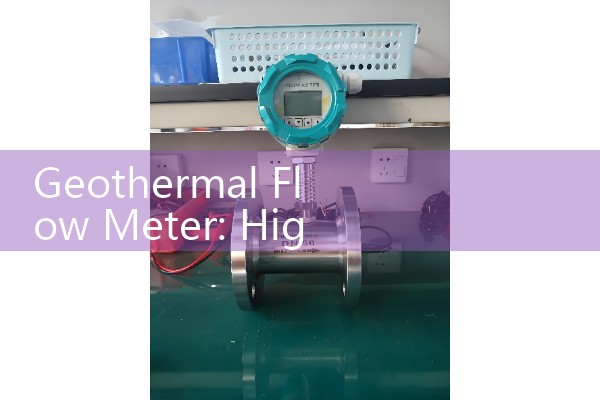

Geothermal Flow Meter: High-Temperature Thermal Energy Loops
Quick Answer: Geothermal energy loops need flow meters that survive constant high temperature, thermal cycling, and mineral-rich brine. Silver Automation Instruments supplies inline and insertion thermal mass flow meters, vortex flow meters, and electromagnetic flow meters rated for 180 °C, 250 °C, or higher, with 4–20 mA HART output and ATEX Zone 1 certification. Tell us your pipe size (DN), fluid temperature, and percent dissolved solids, and we will propose a meter that avoids downtime from electrode fouling or sensor drift.
We have seen geothermal operators struggle with one-size-fits-all flow meters that fail within weeks. High-temperature geothermal loops are not like chilled water circuits. The fluid is often saturated brine at 120 °C to 200 °C, carrying silica, chlorides, and hydrogen sulfide. A standard electromagnetic flow meter with rubber lining will soften and delaminate. A plastic vortex meter body will warp. Most engineers skip past the glossy brochures and want a straight answer: which flow meter will last in their specific loop? Our experience across Southeast Asia, East Africa, and Latin America shows that three technologies work when properly specified.
Electromagnetic flow meters for geothermal brine
High-temperature electromagnetic flow meters with PTFE or PFA liners handle conductive brine up to 180 °C. Silver Instruments offers a mag meter with PTFE liner, Hastelloy C electrodes, and a remote-mounted transmitter rated for 150 °C ambient. The key is the electrode material. A customer in Kenya uses our DN100 electromagnetic flow meter on a reinjection line at 165 °C, silica concentration 320 mg/L. After 18 months, the electrodes show no measurable pitting. We used 316L with a polish finish to resist scaling, not Hastelloy which can degrade in high-chloride, low-pH brine. Always request the water analysis sheet before quoting. The same meter series goes down to DN15 for small makeup water lines, where accuracy at 0.2% of rate matters for mass balance reporting.
Vortex flow meters for superheated steam and two-phase fluids
In binary cycle plants, working fluids like isopentane or isobutane need vortex flow meters with all-welded stainless construction. Our vortex meter with dual-sensor design, rated to 250 °C, measures volumetric flow, temperature, and calculates mass flow for saturated steam. A geothermal operator in Indonesia replaced three insertion turbines with our DN80 wafer vortex meter on a low-pressure steam line at 130 °C and 2.5 bar. The payback was under four months because the old meters required monthly cleaning of impulse lines. The new vortex meter has no moving parts and uses a piezo sensor isolated from the fluid by a stainless diaphragm. For steam purity monitoring, pair it with a condensate return mag meter to detect tube leaks early. That combination detects a 2% water breakthrough within 30 seconds.
Thermal mass flow meters for low-flow thermal loops
Direct-use geothermal district heating often runs at flow rates below 0.5 m/s in DN50 pipes. Here, an insertion thermal mass flow meter with a Hastelloy C276 sensor measures mass flow directly, no pressure and temperature compensation needed. It handles clean hot water or glycol-water mixtures up to 180 °C. A project in Turkey uses 14 of our t
Installation details that prevent early failure
High temperature magnifies every installation mistake. Always locate the flow meter downstream of a strainer with a 40-mesh screen for brine. Straight pipe runs matter: we recommend 10 DN upstream and 5 DN downstream for vortex meters, 5 DN up and 2 DN down for electromagnetic meters. With insertion thermal meters, check that the thermowell does not touch the opposite pipe wall when expanded. We have seen a 25 mm gap disappear at 200 °C, shearing the sensor. Specify a compression fitting with a thermal expansion loop. If the pipe expands 8 mm, the fitting must allow that without leak. Silver Instruments drawings include expansion allowances when you give us the exact material grade and maximum temperature.
Silver Automation Instruments real support for geothermal projects
We stock high-temperature sensors and spare transmitters for emergency replacement. A Philippine plant called on a Friday evening with a failed mag meter on a brine production well. We shipped a replacement DN80 meter from our Singapore warehouse and it arrived Tuesday morning. The well was back online by noon. For new projects, send an isometric sketch with pipe size, fluid type, maximum temperature, and required output protocol. We recommend the correct flow meter within one working day. Contact us via Email: [email protected], Tel: +86-135-1213-1526, WhatsApp: 86-135-12131526, or WeChat: +86 13512131526. Provide your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will return a quote with a two-year warranty.
FAQ
What flow meter works best for geothermal brine at 200 °C and 30 bar?
A PTFE-lined electromagnetic flow meter with tantalum or platinum electrodes, remote transmitter, and ATEX rating. Our DN25 to DN300 mag meters handle 200 °C with a ceramic liner option for rapid thermal cycling.
Can I use a turbine flow meter in geothermal steam?
We do not recommend it. Wet steam and debris destroy bearings quickly. A vortex meter with all-welded body and no moving parts is the safer choice for 90% of geothermal steam applications.
How often do high-temperature flow meters need recalibration?
We ship every meter with a 5-point calibration certificate traceable to NIST. For geothermal brine, we suggest a field verification every 12 months using a clamp-on ultrasonic meter as a reference. Most customers find drift is under 1% after year one.
Do you supply meters for acidic geothermal fluids (pH below 4)?
Yes, we supply Hastelloy C276 electrodes and PFA liners for pH down to 2. We also offer a titanium-insertion thermal meter for low-flow acidic condensate. Send your full water chemistry and we will confirm material compatibility.
Can Silver Instruments provide ATEX or IECEx certification for geothermal plants?
Yes. Our high-temperature flow meters carry ATEX Zone 1, IECEx, and SIL 2 functional safety certification for the transmitter. Certificates are included in the quotation package.
