Digital Nitrogen Gas Flow Meter: Thermal Mass Purging Airflow Line Trackers
Quick Answer
A digital nitrogen gas flow meter with thermal mass sensing measures purge gas flow directly in Nm3/h, kg/h, or standard liters per minute. Silver Automation Instruments supplies inline and insertion thermal mass meters for pipe sizes from DN15 to DN100. Send us your pipe size, pressure, temperature, and flow range for a selection and price.

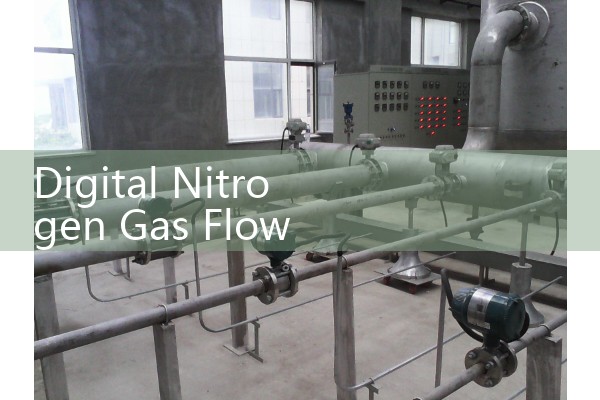

Where These Meters Are Used
We see these units on nitrogen purging lines in chemical plants, food packaging rooms, LNG terminals, and heat treatment furnaces. A digital thermal mass meter tracks low flow rates during pipe purging and tank blanketing. The same device can monitor line flow after a pressure regulator or valve. Because nitrogen is clean and dry, the sensor stays stable for years.
Most engineers skip this part. They assume a rotameter is enough. In practice, a rotameter gives no 4-20 mA signal. The plant team wants a digital signal to the PLC or data logger. A thermal mass flow meter solves that problem.
How the Thermal Mass Sensor Works
The meter uses two PT100 resistance elements. One element is heated. The gas flow removes heat. The electronics measure the temperature difference and convert it to mass flow. This method works well for nitrogen purging because it does not need pressure and temperature compensation. You get a direct mass flow reading in kg/h or a standard volume reading in Nm3/h.
In practice, this is useful when purge lines run at low pressure. An orifice plate would lose too much pressure. A vortex meter would not read at very low velocity. Thermal mass sensing handles low flow down to 0.5 Nm3/h in a DN15 line with good repeatability.
Line Tracker Output and Integration
The digital output on a nitrogen purging airflow line tracker typically includes 4-20 mA, HART, and RS485 Modbus. Some plants in the Middle East ask for ATEX Zone 1 approval. Our team can supply stainless steel sensors with IP65 electronics and galvanic isolation. The meter can power from 24 V DC and connects directly to a PLC analog input card.
We have seen a paint manufacturer in Southeast Asia use one thermal mass meter to track nitrogen flow across three mixing tanks. The readout was sent to a local display and the plant SCADA system. This gave the maintenance team a clear record of each purge cycle. The same wiring approach works for food packaging lines in Vietnam and chemical terminals in Saudi Arabia.
Key Sizing Parameters
To select the right meter, we need five data points.
Pipe size in DN. Flow range in Nm3/h or kg/h. Nitrogen pressure in bar. Nitrogen temperature in degrees Celsius. Signal output type. A typical DN25 purge line may run 2 to 50 Nm3/h at 3 bar and 25 degrees Celsius. That fits a DN25 inline thermal mass flow meter with 4-20 mA HART output.
For larger headers from DN80 to DN100, an insertion thermal mass probe often works better. The cost is lower than an inline meter. Installation uses a compression fitting
Accuracy and Low Flow Stability
Silver Automation Instruments calibrates each thermal mass flow meter against air or nitrogen traceable to a mass flow standard. Accuracy is plus or minus 1 percent of reading across most of the range. Near the low end, accuracy may shift to plus or minus 0.5 percent of full scale. The response time is under 1 second. This matters when a purge cycle lasts only 20 seconds and the PLC must confirm flow before the next batch step.
Temperature compensation is built in. The electronics measure gas temperature and correct the heat transfer calculation. Because nitrogen properties are well known, the meter stays accurate even if the gas temperature changes from 20 to 60 degrees Celsius.
Installation Notes for Nitrogen Purging Lines
Install the meter in a straight pipe section. We recommend 15 DN upstream and 10 DN downstream where possible. The pipe must be full of gas. Avoid installing directly after a pressure regulator or a partially open valve. If the pipe has moisture or oil carryover, use a filter upstream. The sensor probes should be aligned with the flow direction arrow on the meter body.
For outdoor installations in tropical or coastal areas, choose IP65 or IP67 housing. A sun shield helps in direct sunlight. In hazardous areas, choose the ATEX Zone 1 option with flameproof or intrinsic safety certification. Our sales engineers can confirm the correct certification for your region.
Frequently Asked Questions
Can a thermal mass flow meter measure nitrogen gas at low pressure?
Yes. Thermal mass measurement does not need a minimum pressure drop. It can measure nitrogen at 0.5 bar or even lower as long as flow velocity is within the sensor range.
What is the difference between an inline meter and an insertion probe?
An inline meter has a built in flow tube and matches a specific pipe size. An insertion probe fits into a large pipe or duct through a compression fitting. Inline meters are common for DN15 to DN50. Insertion probes are common for DN80 and larger headers.
Which output is best for a purge line tracker?
4-20 mA HART is the most common output for PLC and DCS integration. RS485 Modbus is useful when many meters connect to one data logger or SCADA network. Silver Automation Instruments can supply both outputs on the same meter board.
Do I need pressure and temperature compensation?
No. The thermal mass sensor reads mass flow directly. The electronics compute standard volume flow using the nitrogen temperature and pressure at the sensor. You do not need a separate flow computer in most cases.
How fast can Silver Automation Instruments quote a nitrogen purging application?
Send us your pipe size, flow range, pressure, temperature, and output type. We reply within 24 hours with a model and price. Our contact numbers are Tel: +86-135-1213-1526, Whatsapp: 86-135-12131526, WeChat: +86 13512131526.
