Oil Flow Meter ANSI 300: High-Strength Bolting and Gasket Alignment Rules
Quick Answer: For ANSI 300 oil flow meters, always use high-strength bolting such as ASTM A193 B7 studs with ASTM A194 2H nuts. The gasket must be aligned to within 1.5 mm of the meter bore centerline. Silver Instruments supplies oval gear and Coriolis flow meters with pre-engineered bolt kits and centering rings for ANSI 300 flanges. Send us your oil type, pressure (bar), pipe size (DN), and flow range to get a quote with full bolting specs.
Why Bolting Rules Matter for Oil Flow Measurement
Most flow meter installations fail at the flange connection. Not the electronics. Not the sensor. The joint. An ANSI 300 flange rated for 51 bar at 38 degrees Celsius can still leak if the bolts are too soft or the gasket shifts by 2 mm. With crude oil, diesel, or hot lube oil, a small leak means a safety hazard and a meter reading that drifts over time.
In practice, many maintenance teams reuse old bolts or grab whatever studs are in the warehouse. We have seen this on customer sites many times. A palm oil refinery in Indonesia used stainless steel 304 bolts on an ANSI 300 flange for a hot oil flow meter. After three months, the bolts stretched. The gasket blew. The oval gear flow meter was over-ranging by 4 percent because the back pressure changed. The fix was simple: replace with B7 studs and torque to 250 Newton meters for the M20 size.
High-Strength Bolting for ANSI 300 Oil Flow Meters
ANSI 300 flanges on a flow meter demand bolting that meets ASTM A193 Grade B7 for studs and ASTM A194 Grade 2H for nuts. These are chromium-molybdenum alloy steel, heat-treated, with a minimum tensile strength of 860 MPa. For smaller meters, like a 1-inch (DN25) oval gear meter, you will see four M14 or 1/2-inch studs. For a 3-inch (DN80) meter, often eight M20 studs. Always check the pitch diameter. Do not mix metric and imperial threads on the same flange. We supply all Silver Instruments ANSI 300 flow meters with a bolt kit that includes two nuts per stud, hardened washers, and a torque chart.
The bolt length matters. A stud that is too short does not give full thread engagement in the nut. A stud too long can bottom out and give a false torque reading. For a standard raised face flange, the stud length equals the flange thickness times two, plus the gasket thickness, plus two nut heights, plus two washer thicknesses, plus about three threads protrusion. We calculate this per order. When you request a quote, tell us your pipe schedule and we will confirm the exact stud length.
Gasket Alignment Rules to Prevent Meter Error
Most engineers skip this part. But gasket misalignment is the number one cause of flow disturbance right before the meter inlet. For an oval gear or Coriolis meter, any protrusion into the flow path creates swirl and jetting. That changes the velocity profile. A positive displacement meter like an oval gear will still count the volume, but with added uncertainty. A Coriolis meter might show a slight zero shift. We recommend a gasket alignment within 1.5 mm of the inner pipe wall. Use a centering ring gasket or a spiral wound gasket with inner guide ring. Do not use full-face soft gaskets on raised face ANSI 300 flanges. They can creep and block the flow passage as bolts are torqued.
Here is a detail we have seen. A lubricant blending plant in Vietnam installed a DN50 Coriolis mass flow meter for base oil. The fitter used a plain PTFE gasket cut from a sheet. It was not centered. After two weeks, the gasket extruded inward about 3 mm. The meter zero drifted by 0.2 kg per minute, which over a 20-ton batch added up to a 12 kg error per shift. They switched to a spiral wound gasket with a centering ring and the error disappeared.
Common Mistakes on Customer Sites
One mistake we see often in the Middle East and Africa is skipping th
Another mistake is using lubricant on bolt threads randomly. With B7 studs, a moly-based anti-seize gives a friction factor around 0.12. If the fitter uses no lubricant, the friction factor jumps to 0.20 or higher. At the same torque wrench setting, the actual bolt preload drops by 40 percent. That is enough to unseal the gasket at 40 bar of hot oil pressure. We specify the lubricant type in the bolting certificate.
How Silver Instruments Ships ANSI 300 Flow Meters Ready to Mount

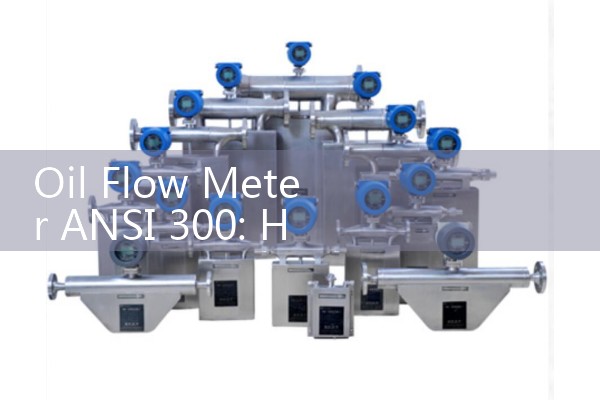

Every oval gear flow meter and Coriolis mass flow meter from Silver Automation Instruments can be ordered with ANSI 300 flanges, high-strength bolting, and matched gaskets. We supply bolt kits with material certificates to EN 10204 3.1. The gasket type is selected based on your fluid: graphite-filled spiral wound for hot oil, PTFE-filled spiral wound for light chemicals, or metal jacketed for high-temperature thermal oil. For standard oil applications up to 200 degrees Celsius, we use graphite-filled spiral wound with an inner ring.
The flow meter body is marked with the bolt torque sequence number. We include a one-page drawing showing the cross pattern tightening. If you need it, we can also supply the tension values for hydraulic bolt tensioning, common on larger DN150 and above ANSI 300 meters for crude oil pipelines. All mounting hardware is packed in a sealed box with a weather-resistant label. This helps your site team receive the right parts fast, even in remote locations like a pumping station in Papua New Guinea or a refinery in Angola.
Frequently Asked Questions
1. What bolt material do you recommend for ANSI 300 oil flow meters?
We always recommend ASTM A193 B7 studs with A194 2H nuts. For sour service (NACE MR0175), we supply A193 B7M or L7M with appropriate hardness limits.
2. Can I reuse the old bolts when replacing an oil flow meter?
Do not reuse bolts if you cannot verify their original material certificate. Bolt stretching and corrosion under the nut face change torque-tension relationships. Silver Instruments includes new bolt kits with every meter as a standard option.
3. How do you ensure gasket alignment during installation?
Use a gasket with an inner centering ring that mates with the flange raised face step. Or use a simple alignment tool: insert three guide pins through the flange holes before lowering the meter into place. We ship meters with a centering ring pre-installed loosely on one flange.
4. What torque values apply for ANSI 300 flanges on your oval gear meters?
It depends on stud size. For M16 B7 studs, lubricated threads need about 150 Nm. For M20, 250 Nm. For M24, 420 Nm. We provide a torque table for the specific meter and flange rating.
5. Do you supply the flow meter with the gasket already mounted?
We can ship the gasket loosely placed on one flange face with protective tape. This prevents damage during transport and speeds up your installation. Just remove the tape, align the mating flange, and insert the studs.
Send us your oil type, operating pressure (bar), temperature (degrees Celsius), pipe size (DN), and required flow range. We will quote an ANSI 300 oil flow meter with the correct bolting and gasket kit. See our oval gear flow meter for crude oil and diesel applications.
