Transformer Oil Flow Meter 10 L/min: Finding Micro Leaks Before Failures
Quick Answer
A 10 L/min transformer oil flow meter spots micro leaks long before insulation degradation trips the Buchholz relay. Silver Instruments oval gear flow meters read as low as 2 L/min with ±0.5% accuracy and send a 4-20 mA alarm. Early detection on a 50 MVA transformer can prevent a full rewinding job.
Why 10 L/min Matters in Transformer Oil Circulation
Forced oil cooling loops on large power transformers move 200 to 800 L/min. A pressure drop or a cracked gasket can bleed 10 L/min without tripping the system. This silent loss cuts the cooling rate. Winding hot spots start to form. Dissolved gas analysis might catch acetylene only after partial discharge has already damaged paper insulation. A dedicated oil flow meter set to alert at 10 L/min gives maintenance teams a direct, early warning.
In practice, many sites rely on temperature sensors and oil level switches. Those indicators lag. By the time the oil level alarm triggers, the leak has already progressed. A 10 L/min meter closes that gap. One engineer at a geothermal plant in Kenya found a 12 L/min leak from a cracked pipe support. The transformer was a 30 MVA unit. Without the flow meter, the unit would have tripped within two weeks. The repair cost was USD 1,200 instead of USD 180,000 for a rewinding.
How Silver Instruments Oval Gear Meters Detect Micro Leaks
Our OGM series uses positive displacement. Two oval rotors turn inside a measuring chamber. Each rotation sweeps a fixed volume. A non contact sensor picks up the rotor frequency. The output is a pulse train you can convert to 4-20 mA or digital signals. This method counts every drop of oil. It does not depend on conductivity or magnetic properties, so it is perfect for transformer oils, including mineral oil, silicone oil, and natural ester fluids.
The flow range of OGM-10 covers 2 L/min to 100 L/min. Accuracy is ±0.5% of reading. Viscosity from 5 cP to 500 cP has no effect on performance. Transformer oil runs at 10 to 30 cP in normal operation. The meter delivers stable readings even during cold starts. In Southeast Asia, a paint manufacturer installed two OGM-10 meters on a 20 MVA unit. The meters caught a 9 L/min drop after a pipe support bracket cracked. That early catch saved the production line a 12 hour shutdown.
Key Specifications for 10 L/min Transformer Oil Flow Meters
Process connections are DN10 or DN15. Body material in stainless steel 316L for outdoor installations or cast iron for indoor use. Seal material is Viton or PTFE, compatible with all transformer oils. Maximum operating pressure is 40 bar at 120 °C. The meter comes with a pulse output, 4-20 mA active loop, and RS485 Modbus option. ATEX Zone 1 certification is available for oil filled equipment areas. Power supply is 24 VDC. The display shows instantaneous flow in L/min and totalized liters. We recommend using the 4-20 mA signal to feed your DCS or PLC. The local display helps field verification durin

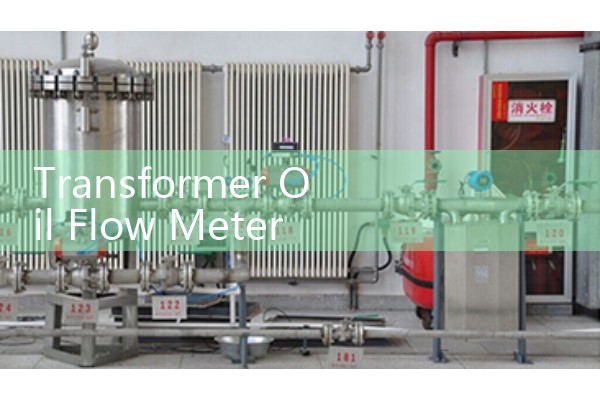

_600x400.jpg)
Installation Tips to Avoid False Alarms
Install a Y strainer with a 100 micron mesh upstream of the oval gear meter. Transformer oil can carry sludge, carbon, or metal particles. The strainer protects the rotors. Mount the meter horizontally. Do not install it upside down or the air pocket will cause reading errors. Oval gear meters do not need straight pipe runs. Wire the 4-20 mA loop with shielded twisted pair cable. Ground the shield at one end only. We saw a site in Nigeria where unshielded cable caused a 2 mA drift. That triggered a false leak alarm and an unnecessary transformer shutdown. After installing proper shielded cable, the signal returned to stable 4 mA at zero flow.
For high vibration areas, use a bracket to support the meter body. The OGM meter can handle 2 g vibration, but long term fatigue can loosen connections. Double check the flange bolts after the first week of operation.
How to Order the Correct Oil Flow Meter
Send us your pressure in bar, temperature in °C, pipe size as DN, and your expected flow range. Also specify the oil type, mineral or ester. This determines the seal material. A customer in Chile ordered a DN15 OGM meter for a 10 L/min target after sending a photo of the flange. He received a meter with 1/2 inch NPT threads and installed it in one shift. If you need HART protocol, mention it. We ship ex stock from our warehouse. Visit our oval gear flow meter section on flow-meter.com.au or email your data points. No generic contact forms. Tell us the application details and we will send a quote within 24 hours.
FAQ
What is the lowest flow the oval gear meter can detect?
The OGM-10 model measures down to 2 L/min. For transformer leak monitoring, we recommend a 10 L/min range with a 0.1 L/min resolution. At 2 L/min, the output pulse is still clean and countable.
Can the meter handle high temperature transformer oil?
Yes. The standard version operates from -20 °C to 120 °C. For oil temperatures up to 150 °C, we offer a high temperature version with special seals. Mention this when requesting a quote.
Is ATEX certification available for hazardous areas near the transformer?
Yes. Silver Instruments provides ATEX Zone 1 and IECEx certification for the OGM series. The meter can be installed in areas where flammable gases or oil vapors may be present.
How often does the meter need calibration?
Oval gear meters are mechanically robust. We recommend a calibration check every 12 months. If the oil is clean and the strainer is maintained, the accuracy stays within ±0.5% for years. We have customers in the Middle East who calibrate every 24 months without drift.
Do you supply meters with a local flow display?
Yes. All OGM meters come with an LCD display for instant flow and total. The display is backlit and can be rotated. You can also order a remote display via RS485. This is common when the meter is inside a transformer bay and the control room is 200 meters away.
