Turbine Flow Meter: Precision Volumetric Flow Measurement for Liquids and Gases

Quick Answer: A turbine flow meter measures clean liquid or gas flow by rotating a multi-blade rotor inside a pipe. Silver Instruments supplies inline turbine meters from DN4 to DN300 with 4-20 mA HART output and ATEX Zone 1 approval. Typical accuracy reaches ±0.5% of reading for fluids like diesel, water, or LPG.

How a Turbine Flow Meter Senses Flow

The flow causes a rotor to spin at a speed proportional to volumetric flow rate. A magnetic pickup or RF sensor counts each blade passage and converts it to a frequency signal. This raw pulse output is linear over a wide range for low-viscosity fluids. For higher viscosities, the meter needs a linearization factor stored in a flow computer or PLC. Most engineers treat this as a straightforward pulse-to-flow conversion, but the real challenge is bearing wear and debris.

Common Specifications and Configuration Options

Standard accuracy is ±0.5% of reading for liquids with viscosity below 5 cP. Repeatability often reaches ±0.1%. If you are measuring hydrocarbons with varying temperature, we add an integral PT100 temperature sensor for density compensation. Output options include raw pulse, 4-20 mA HART, Modbus RTU, and even wireless adapters. Flow ranges are wide: a DN15 meter handles 0.16 to 1.6 m³/h of water, while a DN200 flanged model spans 100 to 800 m³/h. Pressure ratings go up to 250 bar with stainless steel bodies. For diesel or kerosene, our most requested combination is a DN25 threaded meter with 4-20 mA HART and a local LCD totalizer.

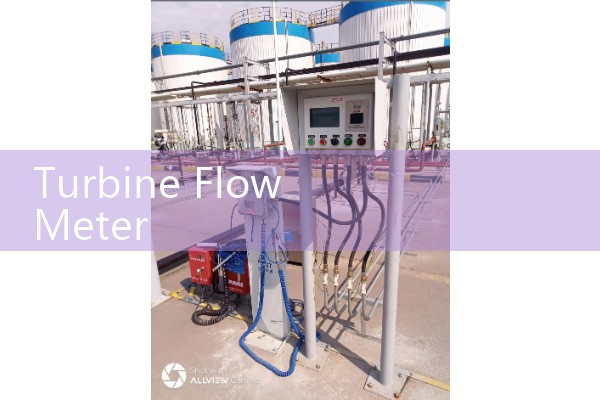

Where Engineers Use Turbine Flow Meters

We see these meters in fuel blending, marine bunkering, water injection, and chemical batch processes. In a paint factory in Indonesia, a DN40 meter monitors solvent feed to mixing tanks at 2 m³/h with only 1.2 cP viscosity. A customer in Saudi Arabia runs a seawater desalination plant and uses a DN150 turbine meter on a brine line after a strainer. In Nigeria, gas distribution skids rely on DN80 meters with PTFE bearings for LPG flow at 20 bar. For marine fuel monitoring in Singapore, our meters pair with a flow computer to report net fuel consumption in kg/h after temperature correction. These are not lab examples. They are field installations we support every week.

Installation Tips That Save You Downtime

Here is the thing: straight pipe runs matter more than the meter itself. We recommend 10 pipe diameters upstream and 5 diameters downstream. A flow straightener of the tube bundle type re

duces swirl, especially after an elbow or valve. Install a Y-type or basket strainer immediately upstream. We have seen a single welding bead destroy a rotor in a chemical plant in Vietnam. Always flush the line before startup. The bearing material also matters. Standard tungsten carbide journal bearings work for clean liquids, but PAO or PTFE bearings suit corrosive fluids. Most engineers skip the vibration check. If you mount the meter near a reciprocating pump, mechanical noise can mimic flow pulses and confuse the transmitter.

Why Buy from Silver Instruments

We keep turbine meter components in stock for fast assembly. When a food additives plant in Guatemala needed three DN10 meters with 316L wetted parts and EHEDG connections, we shipped within 10 days. Our test bench calibrates every meter against a master meter traceable to ISO 17025. Send us your fluid name, viscosity in cP, pipe size DN, flow range in m³/h, and operating pressure in bar. We will recommend a meter model and return a quote in one business day. You can reach us at flow-meter.com.au or ask for a video of the meter test before shipment.

Frequently Asked Questions

What is the typical turndown ratio of a turbine flow meter?
For low-viscosity liquids, the turndown ratio is often 10:1 to 20:1 on a volumetric basis. With linearization, you can extend it to 25:1, but repeatability may drop at the low end.

Can a turbine meter handle viscous crude oil?
Standard turbine meters work best below 5 cP. For crude oil above 10 cP, we suggest a positive displacement flow meter instead. The bearing drag increases and the K-factor becomes nonlinear.

Do you supply meters for corrosive gases?
Yes, we can configure the meter with Hastelloy C-276 internals and PE lining. Contact us with the gas composition, moisture level, and pressure. Our engineers will check material compatibility and propose a solution.

What output do I need for a remote monitoring system?
Choose 4-20 mA HART if your SCADA already supports it. For cellular remote monitoring, a pulse output connected to an RTU with a digital input works well. Our preset counters can also drive a local display with battery power for sites without 24 V DC.

Is a calibration certificate included with the meter?
Every turbine flow meter we ship includes a 5-point calibration certificate at no extra cost. The certificate lists flow rate, frequency output, and accuracy against a reference standard. For ATEX installations, we also supply the EU-Type Examination certificate.
