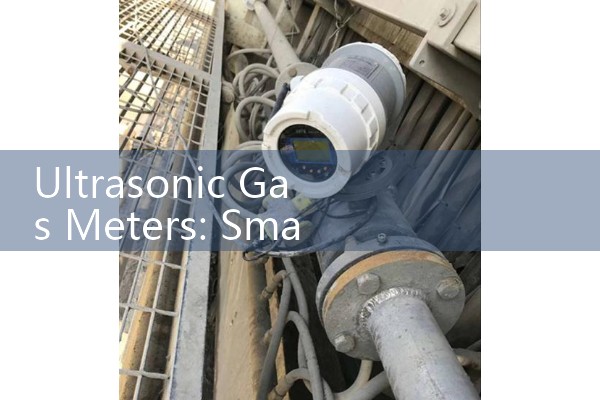

Ultrasonic Gas Meters: Smart Natural Gas Network Custody Billing Infrastructure
Quick Answer: Ultrasonic gas meters provide 0.5 percent accuracy for custody billing in smart natural gas networks. They have no moving parts and keep calibration longer than mechanical meters. Silver Automation Instruments supplies inline and clamp-on ultrasonic gas meters for city gate stations and industrial gas lines.
Custody Billing Accuracy Is the Core Requirement
A small error on a DN150 gas line at 1.0 MPa can shift monthly billing by thousands of US dollars. Ultrasonic gas meters measure transit time of sound pulses.
There is no gear train to wear. No rotor to jam. No lubricant to thicken in cold gas. The meter holds calibration longer than a roots or turbine meter in the same service. That is why smart gas utilities in Malaysia and Vietnam now replace turbine meters with ultrasonic meters on custody transfer points.
Smart Networks Need Digital Outputs and Remote Data
Smart gas networks do not send a person to read a mechanical counter every month. Ultrasonic gas meters from Silver Instruments output 4-20 mA HART, Modbus RTU, and Modbus TCP. The meter can transmit volume, flow rate, pressure, and temperature in one data stream.
We have seen this on customer sites many times. A gas utility installs an ultrasonic meter at a district station. The meter sends data to SCADA. The billing system pulls the same flow total. No manual entry. No paper log. This cuts billing disputes and gives the finance team a clean audit trail.
Selecting the Right Meter for Billing Infrastructure
Here is the thing. Not every ultrasonic meter fits every gas line. For a city gate station with DN100 pipe and pressure from 0.4 to 1.6 MPa use an inline multipath ultrasonic meter. For a distribution line with DN50 and low pressure use a single path insertion meter or a small inline meter.
For temporary billing audits in Australia or Saudi Arabia use a clamp-on ultrasonic gas meter. The clamp-on meter installs outside the pipe without cutting or welding. It measures from the pipe wall. That saves shutdown cost and time.
Site Conditions Decide the Model
Most engineers skip this part. Gas temperature swings can change the sound speed. So the meter must have built in temperature and pressure compensation. Moisture and heavy hydrocarbons in gas can attenuate the ultrasonic signal. In that case choose a higher frequency transduc
For hazardous area billing points specify ATEX Zone 1 or Zone 2 certification. Silver Instruments offers both. The transducer material and housing material also matter. In coastal gas stations in the Middle East and Southeast Asia we often use stainless steel housings to resist salt air corrosion.
Typical Applications and Country Examples
We supplied ultrasonic gas meters to a gas distribution company in Indonesia for a smart billing pilot. The meters were installed on DN80 lines feeding an industrial park. They replaced aging turbine meters. The customer wanted remote data and custody transfer accuracy. After six months the billing disputes dropped.
Another customer in Mexico uses our clamp-on ultrasonic meter for a biogas line that feeds a boiler. The gas is wet and dirty. The clamp-on transducers are mounted outside the pipe. That avoids contact with the gas. The meter has run for over a year without cleaning or recalibration.
Frequently Asked Questions
What accuracy do ultrasonic gas meters offer for custody billing? Inline meters achieve 0.5 percent of reading over a 10 to 1 turndown. Clamp-on types achieve 1 to 2 percent depending on pipe condition and flow profile.
What output signals do Silver ultrasonic gas meters support? 4-20 mA HART, pulse, Modbus RTU, Modbus TCP, and battery powered models with wireless options for remote sites.
Can the meter handle low pressure gas distribution? Yes. Inline single path meters work down to 0.01 MPa. Clamp-on meters need a minimum gas pressure that depends on pipe size and gas type.
How do I specify a gas meter for a smart network? Send the pipe size DN, gas composition, flow range in m3/h, pressure in bar or MPa, temperature in Celsius, and output protocol. We will recommend a model.
Do you ship to Southeast Asia, Latin America, or the Middle East? Yes. Silver Automation Instruments exports to Indonesia, Malaysia, Vietnam, Thailand, Australia, Mexico, Brazil, Saudi Arabia, UAE, South Africa, and Nigeria every month.
Get a quote or technical selection. Send us your pipe size DN, gas type, pressure in bar or MPa, temperature in Celsius, flow range in m3/h, and required output. We will reply within 24 hours with a model and a price. Contact Silver Automation Instruments: Tel: +86-25-68650347, Whatsapp: +86-25-52155837, WeChat: +86 15365082610.
